USA BCI:: 200ECC    Universal Fiber Optic Card Cage System
(BCI = Broadata Communications Inc.)




Features
t3 RU high 19?rack mountable card cage
t18 slots (16 available with single power supply)
tUniversal chassis design to accept most BCI card based products

Applications
tConsolidation of both equipment and space for control rooms and control centers, for corporate
tenterprise networks, teleconferencing,railway networks, intelligent
ttransportation systems, distance learning

Introdution
tBCI’s 200E Series card cage system provides a universal 19? 3 RU high, rack mount solution for most of BCI’s card based product line.This enables designers a space saving and cost effective method for utilizing multiple BCI products in a dense packaging configuration.
tBCI’s system consists of a 18 slot universal chassis (200E-CC) (16usable slots with a single power supply) and a power supply card(200E-CCP) that supplies 180 watts of total system power to the BCI card based units. Each 200E-CCP power supply requires 2 slots in the 200E-CC chassis for installation.
tRedundant power applications can be satisfied by simply installing an additional 200E-CCP into the 200E-CC card chassis.

Specifications

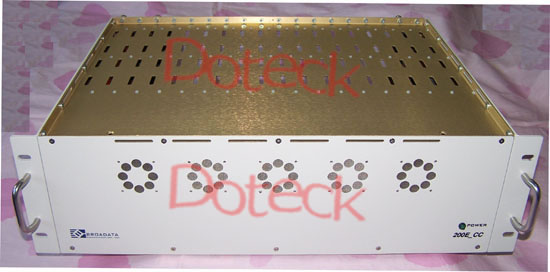

200E-CC Universal Card Cage
Dimension:
Card Cage
One Slot Plug-in Card		 (H x W x D)
5.25?x 19.00?x 11.6?br> 5.25?x 0.93?x 11.6?/TD>
Total Slots Available 18

200E-CCP Card Cage Power Supply Module
Input Power Auto Sense 90-240VAC,47-64Hz
AC Connector IEC EN60320/C13 (3 wire)
Output Power +12VDC @ 15 Amp
LED Indicator Power
No. of Slots Required 2
Fuse 5.0 Amp, 250V, 5 x 20mm
Power Redundancy Yes (through second power supply module)
Operating Temperature 0 to +50 Degree C
Humidity 0 to 95% RH,Non-condensing

The following card cage based plug-in units are available for use with 200E-CC/200E-CCP:
230/240 Digital Fiber Optic Video/Audio/Data Transport System with Enhanced Video Quality
250E/260E Broadcast Quality Video/Audio/Data Transport Systems
271/272 Fiber Optic Unidirectional Video Transmission System with Bi-directional Audio and/or Data
285 Digital Fiber Optic Audio and Data Transmission System
288 Bi-directional Line/Mic Audio and Data Transmisstion Systems
510E Fiber Optic Sync/Async RS-232, RS-422, or RS-485 Data Transmission Systems
520E Fiber Optic Multi-Channel RS-232 or RS-422 Data Transmission System
530E Fiber Optic Add-Drop Data Network Systems
560E Fiber Optic T1/E1 Data Modem
920 All-Optic Route Protection Switch
930 High Speed Fiber Optic Route Protection Switch
1000E Fiber Optic Serial Digital Video (SDV) Transport System
1100 Fiber Optic HDTV 1.5Gb/s Digital Video Transport System
1200E Fiber Optic Serial Digital Audio (AES/EBU)Transport System
4600E High Resolution Fiber Optic RGB/Sync Video Transmission Systems
4800 Fiber Optic DVI Links
6100E Fiber Optic Multi-Channel Audio Transmission Systems
6102 Fiber Optic Stereo Audio Transmission Systems
6540E Passive Optical CWDM Systems
6545 2-Channel WDM Systems
6820E/6821E Fiber Optic 10/100 Ethernet Switching Converter
6830E/6831E Fiber Optic Gigabit Ethernet Transceivers
