Doteck AS1 Series

Datasheet

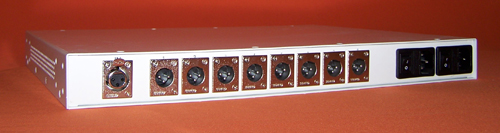

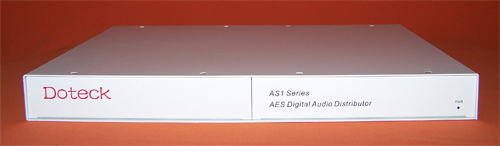

Doteck AS1 Series AES/EBU Digital Audio Splitter

Doteck

Doteck
Features
tDesigned specially for radio station with high quality audio format Splitter requirements
tVery wide analog audio dynamic range
tAutomatic switching between balanced and unbalanced audio input, ESD protection, more safe, more reliable
tCompatible with many sorts of AES/EBU digital audio sampling frequencies

tPerfect LED indicators design, very convenient to monitor device work well or not

tPCB boards made with environment friendly Pb-free
tPCB boards made with multilayer design, to ensure stable and reliable signal conversion
tAll components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant and exquisite appearance, light weight
tSwitching power supply design, wide voltage range, reliable long-term running
t19-inch width 1RU height standard box design, convenient to setup and operate

Introduction
tDoteck AS1 series AES/EBU digital audio splitter input one AES/EBU digital audio, output 8 AES/EBU digital audio.
tDoteck AS1 series AES/EBU digital audio splitter has high supreme signal precision, high supreme stability, high supreme reliability, which is a ideal audio splitter for radio station, CMMB, IPTV, mobile TV, mobile phone TV, telecommunication operators, government video conference system and other new media field.

Technical Specifications

AES/EBU audio input

Standard

AES/EBU under AES3-1992(ANSI S4.40-1992, IEC 958)

Channel

1

Level

0.2-7.0Vp-p

Sampling frequency

32KHz-108KHz

Impedance

110Ω(balance)

Connector

XLR(balance), BNC(unbalance)


AES/EBU audio output

Channel

8

Level

5Vp-p

Sampling frequency

48KHz

Jitter

<0.005UIp-p

Rise/Fall time

<25ns

Impedance

110Ω(balance)

Connector

XLR(balance)


Physical

Dimension(H×W×D, mm)

44×433×340(mm)

Power supply

130-260VAC, 50/60Hz

Operating temperature 0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator Power, audio activity
