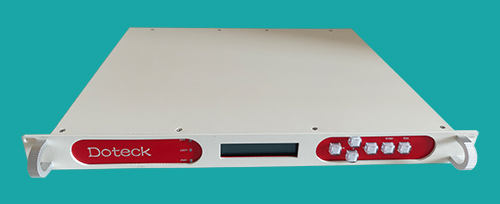

Doteck::R2 Series  H.264/MPEG-2 HD/SD Encoder

Doteck

Doteck

Features
tSupport for H.264/AVC High Profile Level 3 code, video preprocessing algorithm advanced
tAudio coding support MPEG1 Audio Layer 2
t4-channel SD input, support audio embedded
t1-channel ASI input, support stream multiplexer
tSupport PAL、NTSC standard definition video
tSupport MPTS ASI output
tSupport IP output and multiplexer, and UDP, unicast and multicast
tSNMP
tReliable design, full hardware encoder
tBetter quality than broadcasting standard
tClear operating status, LCD indicator on the panel for error signal and LED power supply

Introduction
tDoteck R2 H.264/MPEG-2 HD/SD encoder department is a professional SDI coding and multiplexing products.The product has 4-channel SD input interface, support audio embedded, support H.264/MPEG-2 coding format. At the same time to encode the 4-channel SD standard digital video, with a group of ASI input. The input TS and the generated TS are multiplexed into MPTS output, and can be inserted into the SI information.
tDoteck R2 system has the advantages of high integration, low cost, and can be widely applied to various digital television broadcast system.

Technical Specifications

Input interface

SDI video signal

BNC  75Ω

ASI

BNC  75Ω


Output interface

ASI

BNC  75Ω

Output Speed

2.0~15Mbps adjustable

IP

RJ-45


Video encoding

Resolution

720×480_60i
720×576_50i

Encoding

H.264/AVC High Profile Level 3.0

Speed

0.8Mbps~20Mbps

Speed Control

CBR/VBR

GOP Style

IBBP

Video Processing

Release interlaced scan, noise control and unsharp


Audio encoding

Sample rate

32KHz、44.1KHz、48KHz

Bit rate

64、128、192、256、384Kbps

Specialty

MPEG-1 layer 1/2,CD quality
Support one stereo audio or dual tracks



Physical

Dimension(H×W×D, mm)

44mm×433mm×340mm

Temperature

0~45℃(Operating);-20~80℃(Storage)

Power Supply

130VAC-260VAC,50Hz,25W
