Doteck O1 Series
Datasheet

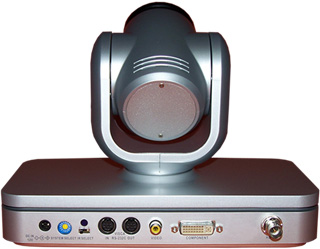

Doteck::O1 Series  HD Video Conference Camera

Doteck

Doteck

Applications
tVideo conference
tEducation, long distance learning
tCorporate training

tMedical treatment


Features
tHD 1080i 60/50; 1080P 30/25; 720P 60/50
tHD CMOS Sensor, 1/3 inch with 2Megapixels, output superb picture quality
tPan degree: 340 degrees, max speed 200 degrees/s; Tilt degree: -30 degrees to -90 degrees, max speed 120 degrees/s
tNTSC/PAL full HD formats output
tHD: 1080i 60/50; 1080P 30/25; 720P 60/50
tSD: video 480 TVL
tAll camera turning, zoom control, pre-settings position and other variety of control functions can be performed by standard infrared controller RS-232 interface (VISCA PELCO P/D protocol )
t120x zoom ratio (10x optical + 12x digital), the fast and stable auto-focus zoom lens have an impressive 120x zoom ratio
tO1 series can store up to 128 preset positions fast pan/tilt/zoom setting ballhead, focus position even every function of the camera

Introduction
tDoteck O1 series HD color and communication-oriented camera will bring you full HD visual feeling and control flexible to output different signals (SD, HD), it makes new HD projects application much simple and easier. 1/3-type HD CMOS image sensor boasting two million effective pixels, higher sensitivity to guarantee high-resolution, high-quality images. Moreover, our camera could be used widely under full ballhead. 10x optical output the image at ratio of 16:9, multi-format HD signals can be converter, rapid ballhead capture image fast, auto focus, auto exposure, infrared control and long-distance control. It is the best choice for conference, education and medical treatment etc.

Technical Specifications
Signal system

HD, SD

Image sensor 1/3 HD COMS
Effective pixels Approx.2 Megapixels(16:9)
Resolution HD 1080i, 60/50; 1080P, 30/25; 720P,60/50
Lens 5.1mm~51mm

Horizontal viewing angle

5.4 degrees(tele) to 50 degrees(wide)

Minimum object distance

10mm(wide), 800mm(tele)

Minimum Illumination 1.0Lx(F1.8)
Auto exposure Auto/Manual/Priority AE/Exposure compensation/Bright compensation
Electronic shutter 1/2 to 1/10,000 sec
Gain Auto/Manual(-3 to +18 dB)
White balance Auto/Manual/Indoor/Outdoor/One push auto
S/N Ratio More than 50 dB

Ballhead

Pan: ±170 degrees(Max speed 200 degrees/s), Tilt: -30degrees to + 90 degrees(Max speed 120 degrees/s)

Position preset

128

Image 16:9
Video output HD-SDI, YPbPr, SD Video
Camera configuration OSD, RS-232, RS-422
Camera control Infrared control, RS-232, RS-422

Power requirements

12VDC

Power consumption

12W

Operating temperature 0 to 45 degree(32 to 104 F)
Dimensions 250(W)x165(H)x140(D)
