Doteck O4 Series

Datasheet

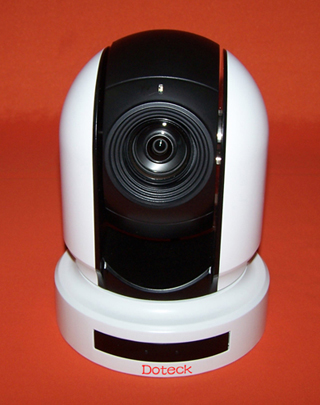

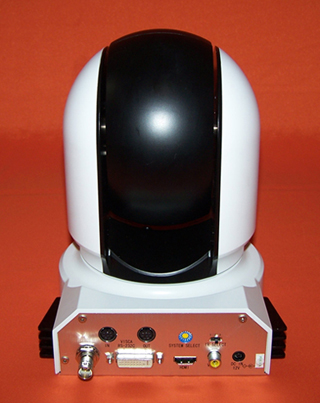

Doteck O4 Series HD Video Camera

Doteck

Doteck

Features
tOutput 1080p/60 super high quality images
tUse 1/2.8” 2.2 million pixels HD CMOS sensor
tWide range of rapid ballhead, quick horizontal, vertical wide range of rotation
Pan degree: 340 degrees,
Max speed 200 degrees/s,
Tilt degree: -30 degrees to -90 degrees,
Max speed 90 degrees/s
tNTSC/PAL full HD and multiple formats output(HDMI, HD-SDI, YPbPr) Output VIDEO, S-VIDEO, 1080p/720p HD signals; Meet the requirements of different systems
tMulti-function infrared remote control All camera turning, zoom control, pre-settings position and other variety of control functions can be performed by standard infrared controller
tRS232C/RS422 interface(VISCA protocol )
t640x zoom ratio(20x optical + 32x digital) The fast and stable auto-focus zoom lens has an impressive 640x zoom ratio
tO4 series can store up to 128 preset positions and invoke pan/tilt/zoom setting ballhead, focus position even every function of the camera fast
tDay and night conversion
tSupport image flip function(desktop installation/hoisting)

Introduction
tDoteck O4 HD color and communication-oriented camera will bring you full HD visual feeling and control flexible to output different signals (SD, HD), it makes new HD projects application much simple and easier. 1/2.8-type HD CMOS image sensor possesses 3.27 million effective pixels, arbitrary coding, and outputs high-resolution, high-quality images. Moreover, our camera could be used widely under a full range of holder.
tDoteck O4 HD camera build-in 20x optical zoom and can output the image at ratio of 16:9. Support multi-format HD signals such as HD 1080p/60; rapid ballhead captures image fast. Moreover, functions of auto focus, auto exposure, infrared control, long-distance control and image flip etc. are available. It is the best choice for conference, education and medical treatment etc..

Technical Specifications

Image sensor

1/2.8” HD COMS

Effective pixels

2.20 million

Resolution
Output format

1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50

Lens

20x optical zoom, f=4.7mm(wide end)~94.0mm(far end)
32x digital zoom

Focus

Auto/ Manual/a key trigger

AGC

On/Off

Minimum Illumination

0.001 Lux

Wide dynamic

On/Off

Electronic shutter

1/30 to 1/60, 000 sec

Backlight compensation

On/Off

White balance

Auto/Manual/Indoor/Outdoor/triggered

DNR

2D/3D

S/N Ratio

More than 50 dB

Ballhead

Pan: ±170 degrees(Max speed:100°/s), Tilt: -30° ~ +90°(Max speed 90°/s)

Other features

128 positions preset,  OSD menu

Image ratio

16:9

Video output

HD  HDMI  YPbPr  HD-SDI
SD Video

Controlling interfaces

RS-232C(8-pin mini DIN)(protocol VISCA), RS-422(5-pin)(protocol VISCA)

Power requirements

DC 10.8 ~ 13.2V

Power consumption

12W

Operating temperature

0-50℃

Relative humidity

0-95%, non-condensing

Dimensions

132x144x144(mm)

Adjunct

AC adapter, IR remote control
