Doteck DP1 Series

Datasheet

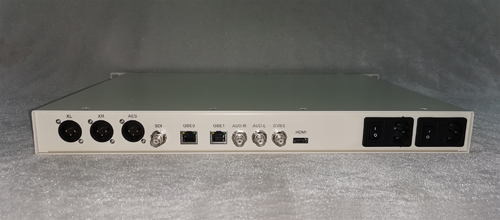

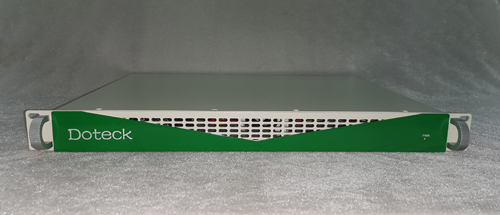

Doteck DP1 Series HD Video Stream Pulling Decoder

Doteck

Doteck

Features
tEmbedded web server, support unified configuration management after remote web page login
tHigh stability, embedded design, low power consumption
tUltra low delay decoding, decoding code delay less than 300ms
tSupport input protocol: UDP, RTP, RTSP, RTMP, HTTP and so on
tRich output interface, support SDI, HDMI, CVBS, analog audio and AES/EBU audio output
tSupport H.264/AVC, MPEG-2, H.265/HEVC video format decoding standard
tSupport MP2, MP3, AAC, AC3, E-AC3 and other audio decoding standard
tSupport 1080p, 1080i, 720p, 576i, 480i resolution output
tPCB boards made with multilayer design, to ensure stable and reliable signal transmission
tAll components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, and light weight
tDual switching power supply design, wide voltage range, reliable long-term running

Introduction
tDoteck DP1 series HD video stream pulling decoder adopts standard 1U case structure, adopts the most advanced full hardware decoding core, it can decode H.264/AVC, MPEG-2, H.265/HEVC and other mainstream video compression standard stream. Under the harsh conditions of low network bandwidth, it also has excellent video and audio fault tolerant capacity. It can adapt to various complex network audio and video application environments and supports multiple protocol input: UDP, RTP, RTSP, RTMP, HTTP, etc..

Technical Specifications


IP stream input

Input interface

RJ45 (1000M)

Stream protocol

UDP, RTP, RTSP, RTMP, HTTP

Channel

1

Video format

H.264/AVC, MPEG-2, H.265/HEVC

Audio format

MP2, MP3, AAC, AC3, E-AC3


Output

SDI

DVB standard, BNC 75Ω

HDMI

HDMI 1.3

CVBS

Video BNC 75Ω, audio XLR (balanced), audio BNC (unbalanced)

AES

XLR (balanced)

Resolution

1080p, 1080i, 720p, 576i, 480i


Control

Management

Web-based remote network management software


Physical

Dimension(H×W×D, mm)

44×433×346(mm)

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

Power supply

130-260VAC, 50/60Hz
