Doteck A1 Series
Datasheet

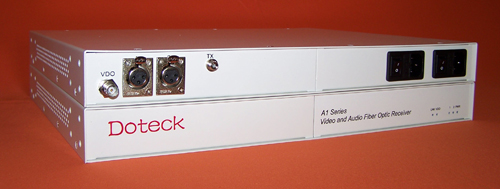

Doteck::A1 Series  Broadcast Quality 1 Video 2 Audio Digital fiber optic Transmission System

Doteck

Doteck

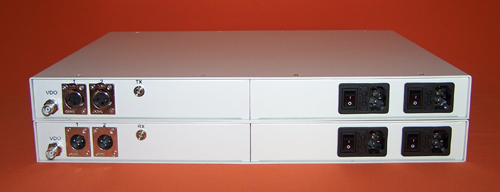

        19-inch 1RU, Dual Power Supply

Doteck


        Mini Box

Features
tPAL (625/50) and NTSC (525/60) standard auto-recognition
tThe technical specifications are better than broadcast quality
tVideo 10 bits A/D conversion, audio 20 bits A/D conversion
tVideo AGC(auto gain control)functionality, poor video signal input tolerance
tAudio output balance/unbalance can be transformed automatically, ESD (Electric Static Discharge) functionality, more safer , more stable
tTransmission distance up to 120 km without relay
tAll components, including connectors, are ordered from  public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, light weight
tPCB boards made with environment friendly Pb-free and RoHS Compliant
tConvenient instructions of LED status Indicator, video/audio activity, optical link, power supply etc

Applications
tTV programme signal transmission
tVideo conference system
tRemote multimedia studio
tDistance learning system

Brief Introduction
tDoteck A1 series is high performance digital optic fiber transmission system. Input 1-channel composite analog video, 2 or 4 or 6-channel analog audio. Output 1-channel composite analog video,2 or 4 or 6-channel analog audio.
tThe quality of video, audio non-compressed transmission with digital designs is much superior to the analog transmission based on amplitude frequency modulation designs.
tDue to the advanced digital fiber optic transmission technology, almost you need not make any adjustments, simple to set up, easy to operate.

Technical Specifications


Video

Channel Number 1
Bandwidth 7MHz
Signal Resolution 10Bits
Input Level 0.6-1.6Vp-p
Output Level 1Vp-p
Video Standard 525/625 lines
Color Delay <10ns
Differential Gain <1.0%
Differential Phase <1 degree
SNR(Weighted) >70dB
Connector BNC 75Ohms

Audio

Channel Number 2,or 4, or 6
Operating Mode Balance/Unbalance
Signal Resolution 20Bits
Input/Output Impedance 600/50 Ohms(balance)
Max Input/Output Level 17.4Vp-p(+18dBm)
Frequency Response 20Hz~20KHz@-0.2dB
THD <0.2%
SNR(Weighted) >88dB@1KHz
Channel Insulation >90dB@1kHz,>90dB@20kHz
Connector XLR

Physical

Dimension:(HxWxD) 44×433×340(mm)
Power Supply 130 - 255VAC,50-60Hz
Operating Temperature 0 - +50 ℃
Humidity 0 - 95% RH, non-condensing
LED Status Indicator Power, Optical Link, Video/Audio Activity

Optical

Fiber Type Single mode or Multimode
Number of fiber 1
Wavelength 1310nm and/or 1550nm
Fiber Optic Connector

FC/PC

Transmission Distance 0-120km
