Doteck A8 Series

Datasheet

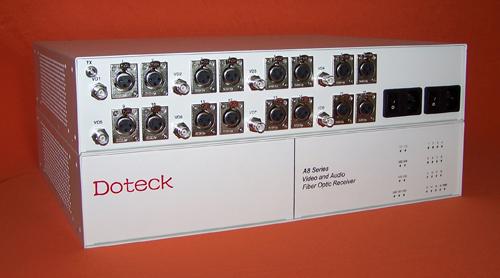

Doteck A8 Series 8-channel Video and 16-channel Audio fiber optic Transmission System

Doteck

Doteck

Features
tPAL(625/50) and NTSC(525/60) standard auto-recognition
tThe technical specifications are better than broadcast quality
tVideo 10 bit A/D conversion, audio 20 bit A/D conversion
tVideo AGC(auto gain control)functionality, poor video signal input tolerance
tAudio output balance/unbalance can be transformed automatically, ESD(Electric Static Discharge) functionality, more safer , more stable
tTransmission distance up to 120km without relay
tAll components, including connectors, are ordered from  public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, light weight
tPCB boards made with environment friendly Pb-free and RoHS compliant
tConvenient instructions of LED status, video/audio activity, optical link, power supply etc.

Introduction
tDoteck A8 series is high performance digital fiber optic transmission system. The transmitter input 8-channel composite analog video and 16-channel analog audio. The receiver output 8-channel composite analog video and 16-channel analog audio.
tThe quality of video, audio non-compressed transmission with digital designs is much superior to the analog transmission based on amplitude frequency modulation designs.
tDue to the advanced digital fiber optic transmission technology, almost you need not make any adjustments, simple to set up, easy to operate.

Technical Specifications


Analog video

Channel 8
Bandwidth 7MHz
Signal resolution 10Bit
Input level 0.6-1.6Vp-p
Output level 1Vp-p
Video standard 525/625 lines
Color delay <10ns
Differential gain <1.0%
Differential phase <1 degree
SNR(weighted) >70dB

Impedance

75Ω

Connector

BNC

Analog audio

Channel 16
Operating mode

Balance, unbalance

Signal resolution 20Bit

Level

17.4Vp-p(+18dBm)

Frequency response

20Hz-20KHz@-0.2dB
THD

<0.2%

SNR(Weighted) >88dB@1KHz

Channel insulation

>90dB@1KHz, >90dB@20KHz

Impedance

600Ω

Connector XLR

Physical

Dimension(H×W×D, mm)

88×433×346(mm)

Dual power supply

130-260VAC, 50/60Hz

Power consumption

<10W

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator

Power, optical link, video/audio activity


Fiber optic link

Fiber type Single mode
Number of fiber 1
Wavelength

1310nm/1550nm

Distance

0-40km, or 0-80km optional

Connector

FC/PC, or SC/PC
