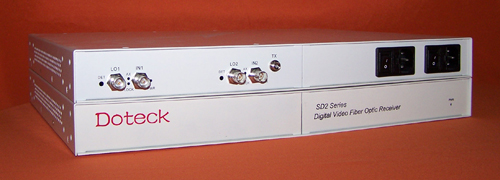

Doteck::SD2 Series 2 SDI/ASI Digital Video fiber optic Transmission System
SDI/ASI signal auto recognition, not need to select by hand
Compliant with the standards of SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI), SMPTE344M
Compliant with the standard of DVB-ASI(EN50083-9)
Auto adaption to the speed of SDI 143M,177M,270M,360M,540Mbps, or DVB-ASI
With automatic cable equalization function, compensation for cable transmission loss
Convenient instructions of LED status, data rate, optical signal, power etc
PCB boards made with environmentally friendly Pb-free
PCB boards made with multilayer design, to ensure stable and reliable signal transmission
All components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
Enclosure box material is made of aluminum, elegant appearance, light weight
Dual switching power supply design, wide voltage range, reliable long-term running
Doteck SD2 series digital video fiber optic transmission system can transmit 2 SD-SDI(143M/177M/270M/360M/540Mbps) standard definition digital video through one single mode fiber or multimode fiber with the standards of SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI), or transmit 2 digital video signal with the standard of DVB-ASI stream.
Due to the advanced digital fiber optic transmission technology, you need not make any adjustments, simple to set up, easy to operate.
Doteck SD2 series transmitter provides 2 SDI/ASI input, and 2 loop-through for local monitoring. The receiver outputs 4-way parallel SDI/ASI digital video.
Doteck SD2 series transmitter equipped with auto-cable equalization circuit, and cable driver circuit available at receiver.
Doteck SD2 series, both at the transmitter and receiver, signal jitter elimination circuit available, to ensure high quality signal transmission over long distance fiber cable.
