Doteck i4AES Series

Datasheet

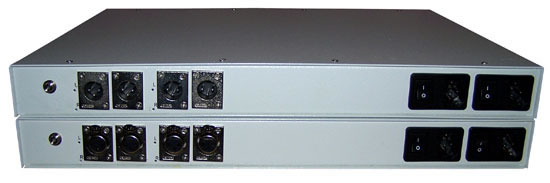

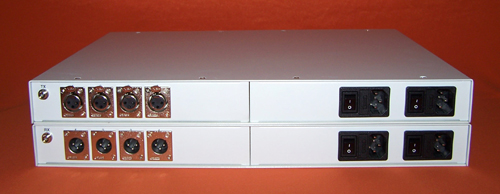

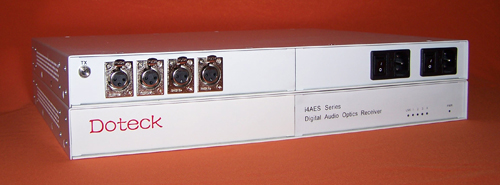

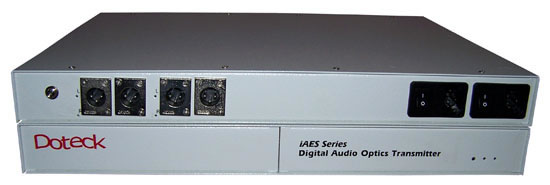

Doteck i4AES Series 4-channel AES/EBU Digital Audio fiber optic Transmission System

Doteck

Doteck

Features
t Input, output AES/EBU digital audio, compatible AES3, S/PDIF
tMany different sampling frequency AES/EBU can be input , it is easy for transmitter and receiver connected with each other
t4-channel synchronous or asynchronous AES/EBU signal can be transmitted at the same time
tThe output signal conforms to international GY/ti56-2000, GY/ti58-2000, GY/ti87-2002
tTransmission distance up to 120km without relay
tAll components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, light weight
tPCB boards made with environment friendly Pb-free and RoHS compliant
tConvenient instructions of LED status indicator, audio activity, optical link, power supply etc.

Introduction
tDoteck i4AES series is high performance AES/EBU digital audio fiber optic transmission system. The transmitter input 4-channel AES/EBU digital audio and the receiver output 4-channel AES/EBU digital audio.
tDoteck i4AES series accepts synchronous or asynchronous AES/EBU of 44.1KHz or 48KHz sampling frequency and many versions of optical transmitter and receiver combinations are available to address different distance requirements.
tDue to the advanced digital fiber optic transmission technology, almost you need not make any adjustments, simple to set up, easy to operate.

Technical Specifications


AES/EBU audio input

Standard

AES/EBU under AES3-1992(ANSI S4.40-1992, IEC 958)

Channel 4
Level 0.2-7.0Vp-p
Sampling frequency 32KHz-108KHz
Impedance 110Ω(balance), or 75Ω(unbalance)
Connector XLR(balance), or BNC(unbalance)

AES/EBU audio output

Channel 4
Level 5Vp-p
Sampling frequency 48KHz
Jitter <0.005UIp-p
Rise/Fall time <25ns
Impedance

110Ω(balance), or 75Ω(unbalance)

Connector

XLR(balance), or BNC(unbalance)


Physical

Dimension(H×W×D, mm)

44×433×346(mm)

Dual power supply

130-260VAC, 50/60Hz

Power consumption

<10W

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator

Power, optical link, audio activity


Fiber optic link

Fiber type Single mode
Number of fiber 1
Wavelength

1310nm/1550nm

Distance

0-40km, or 0-80km, or 0-120km optional

Connector

FC/PC, or SC/PC
  More Installation Choice
Doteck
Doteck
       18 slots, front panel and rear panel, dual power supply
Doteck
       8 slots, dual power supply
Doteck
        4 slots, dual power supply
Doteck
        2 slots, dual power supply
Doteck
         One slot, built-in power supply
